Product Summary

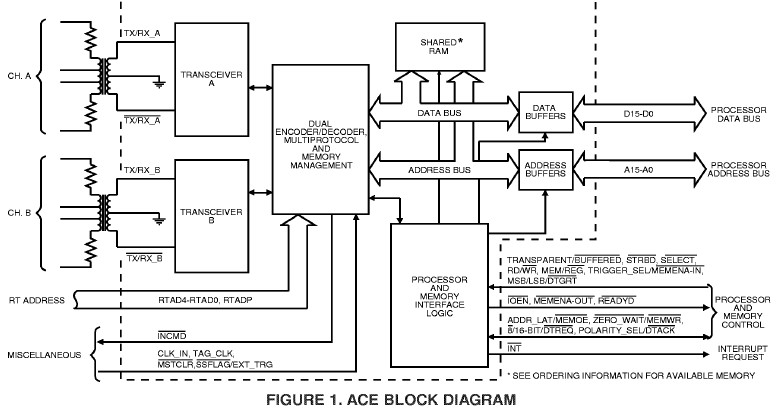

The BU-61580S3-110 is a Advanced Communication Engine (ACE), which integrates two 5-volt-only transceivers, protocol, memory management, processor interface logic, and 4K x 16, or 64K x 16* words of RAM in a choice of pin grid array (PGA), quad flat pack or gull lead packages. The advanced architectural features of this device, combined with its small size and high reliability, make it an ideal choice for demanding military and industrial processor-to-1553 applications.

Parametrics

Absolute maximum rating: (1)Supply Voltage:Logic +5 V:-0.3v min, 7.0 v max; Transceiver +5 V (Note 12): -0.3v min, 7.0 v max; -15v:-18v min, 0.3v max; -12v:-18v min, 0.3v max; (2)Logic Voltage Input Range: -0.3v min, Vcc+0.3 v max; (3)Differential Input Resistance:11k Ω min; (4)Differential Input Capacitance:10pf min; (5)Threshold Voltage, Transformer Coupled, Measured on Stub:0.2 to 0.86 vp-p; (6)Common Mode Voltage: 10 V peak max.

Features

Features: (1)5 Volt Only; (2)Fully Integrated MIL-STD-1553 A/B STANAG 3838 Compliant Terminals; (3)One-Square-Inch Package; (4)Smallest BC/RT/MT In The Industry; (5)Hardware and Software Compatible with BU-61580 ACE Series; (6)Flexible Processor/Memory Interface; (7)Bootable RT* Option; (8)4K x 16 or 64K x 16* Shared RAM; (9)Automatic BC Retries; (10)Programmable BC Gap Times; (11)Programmable Illegalization; (12)Simultaneous RT/Monitor Mode; (13)Operates From 10*/12 /16 / 20* MHz Clock.
