Product Summary

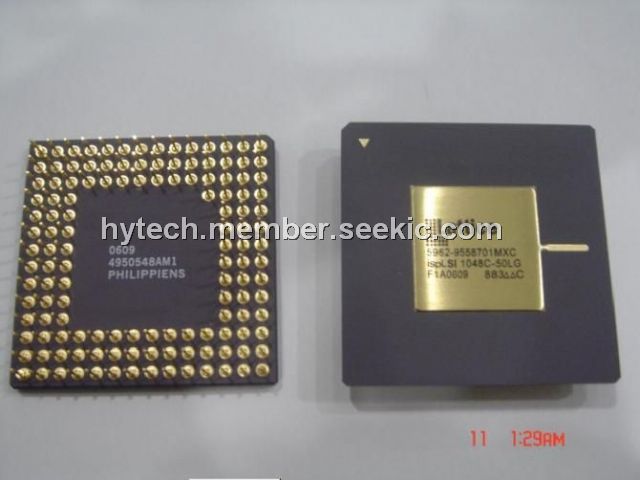

TheISPLSI1048C-50LG/883 is a High-Density Programmable Logic Device processed in full compliance to MIL-STD-883. This military grade device contains 288 Registers, 96 Universal I/O pins, 12 Dedicated Input pins, two Global Output Enables (GOE), four Dedicated Clock Input pins and a Global Routing Pool (GRP). The basic unit of logic on the ispLSI 1048C/883 device is the Generic Logic Block (GLB). The device also has a 96 I/O cells, each of which is directly connected to an I/O pin.
Parametrics
Absolute maximum ratings: (1)Supply Voltage Vcc:-0.5 to +7.0V; (2)Input Voltage Applied:-2.5 to VCC +1.0V; (3)Off-State Output Voltage Applied:-2.5 to VCC +1.0V; (4)Storage Temperature:-65 to 150°C; (5)Case Temp. with Power Applied:-55 to 125°C; (6)Max. Junction Temp. (TJ) with Power Applied:150°C.
Features
Features: (1)high-density programmable logic; (2)high performance e2cmos technology; (3)in-system programmable; (4)combines ease of use and the fast system speed of plds with the density and flexibility of field programmable gate arrays; (5)ispdesignexpert – logic compiler and complete isp device design systems from hdl synthesis through in-system programming.

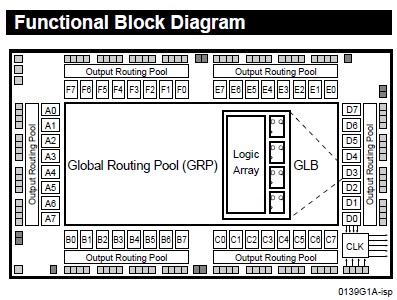

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISPLSI1048C-50LG/883 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
